Jiangsu Shengli Centrifuge Manufacturing Co., Ltd.

Work hard and be honest

Automatic discharge centrifuge/Gypsum calcium centrifuge

PRODUCTS

PRODUCTS

Shengli Centrifuge Manufacturing

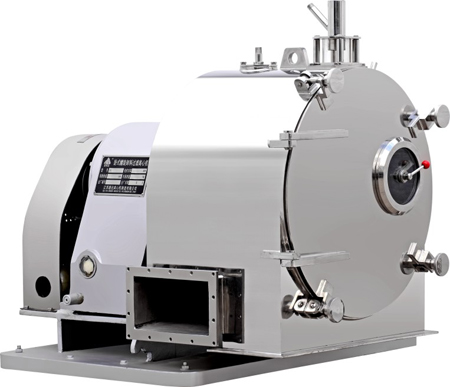

LWL series horizontal scrool discharge screen centrifuge

Features and uses

LWL series is horizontal scroll discharge screen centrifuge with features such as stable operation, good cleaning effect, high economic efficiency, high handling capacity, etc. It can be used in chemical, pharmaceutical, food, metallurgy, mine and other industries for solid-liquid separation.



Features

1. Continuous operation, large handling capacity.
2. Various types of drum, wide range of application.
3. Reasonable power, low energy consumption.
4. The parts contacting materials are manufactured with stainless steel.
5. Adopts imported bearing and sealing element, and independent circulating lubricating system.
6. The sealed enclosure is protective to operator and environment.
7. Small volume, convenient installation.
8. Safe and reliable operation.

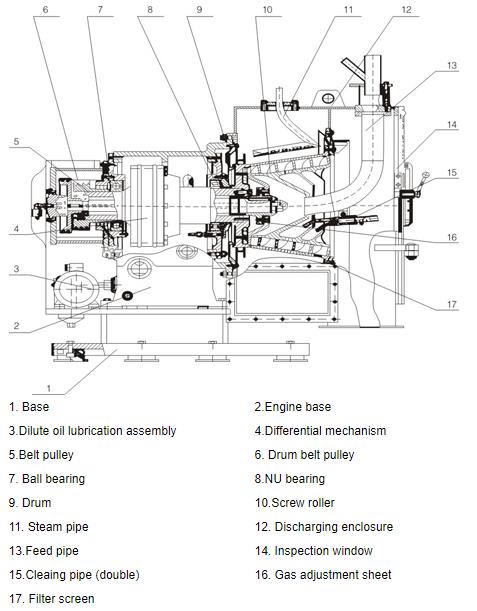

Structure chart

Main technical parameters

Item Model
LWL350 LWL450 LWL530 LWL630 LWL800
Drum diameter(mm) 350 450 530 630 800
Durm speed(r/min) 3000 2500 2000 1800 1500
Separation factor(ω2r/ ɡ) 1765 1575 1190 1140 1000
Production Capacity(m3/h) 1-5 2-8 3-10 5-15 8-20
Motor power(kw) 11 22 30 37 55
Overall weight(kg) 1200 2000 2800 3500 4500
Physical size(mm) 1460×1210×1210 1800×1420×1390 1855×1575×1340 2100×1430×1530 2500×2200×1800
