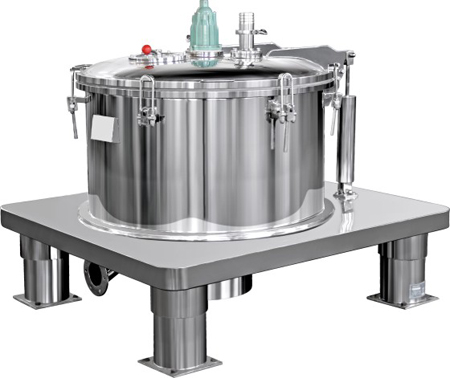

PSB series flat plate manual upper unloading centrifuge

Structure and features

The centrifuges are all filtering equipment with closed top discharge and intermittent operation. The material is added to the rotating drum from the feed tube on the closed casing. Under the action of the centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine. It has the characteristics of stable operation, simple operation, and the feeding, washing, and dehydration are carried out in a closed state.
Without foundation installation, the traditional three-leg suspension structure is cancelled, the installation process is simplified, the design is reasonable, the structure is novel and concise, the appearance is beautiful, and the cleaning is convenient. The basic plate is the work operation platform, which is convenient for operation and maintenance.
The drum, casing, and base plate are all polished; all fasteners are made of stainless steel; transmission parts are closed by stainless steel; seals are made of silicon rubber, equipped with a cleaning spray system, and the whole machine meets GMP sanitary requirements.
Imported high-viscosity liquid damping agent type vibration isolator connected with the flat plate makes the energy generated by the centrifuge due to vibration be absorbed by the vibration isolator, and there is no vibration interference to the foundation ground and surrounding equipment.
The casing is equipped with a full-open and large flip cover, which is convenient for unloading and has good airtightness. It is especially suitable for the solid-liquid separation of toxic and harmful media. It adopts explosion-proof motor frequency conversion drive, anti-static triangle belt, and nitrogen filling protection. It is suitable for flammable and explosive materials. The solid-liquid separation.
The integrity of confidentiality, explosion-proof, and cleanliness are good.

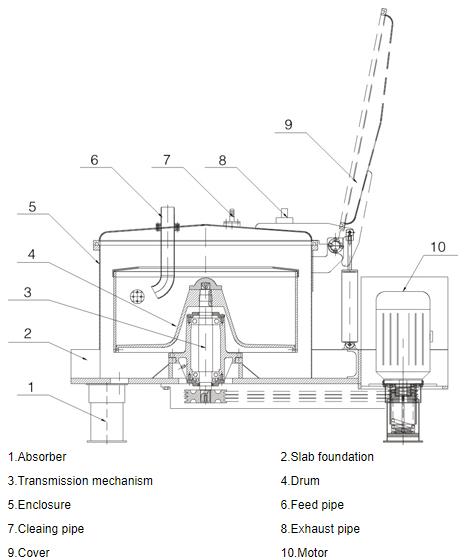

Structure chart

The main technical parameters

Item Model
PSB300 PSB450 PSB600 PSB800 PSB1000 PSB1200 PSB1250 PSB1500
Drum diameter(mm) 300 450 600 800 1000 1200 1250 1500
Drum working highly(mm) 150 200 280 400 450 480 550 680
Drum working volume(L) 5 20 40 100 160 270 360 600
Maximum loading limit(kg) 7.5 30 60 140 215 350 480 800
Durm speed(r/min) 2200 1750/1900 1500/1750 1200/1500 1000/1200 1000/1200 1000/1200 850
Filtration area(m2) 0.14 0.28 0.52 1.0 1.41 1.81 2.16 3.2
Separation factor(ω2r/ ɡ) 812 770/910 755/1027 645/1006 560/804 670/965 700/1006 606
Motor power(kw) 1.1 1.5/2.2 3/4 5.5/7.5 7.5/11 15/18.5 18.5/22 30
Overall weight(kg) 200 500 1000 1600 2000 3000 3200 6500
Physical size(mm) 850×600×600 1050×800×720 1300×1000×1200 1700×1300×1350 1800×1400×1400 2350×1900×2700 2800×2100×2700 2600×2200×1850
